Low-E coated glass（D Series）

Low-E coated glass is one of the coated glass products withvarious metal or other compound depositions on the surface.It has different transmittance to visible light and higherreflectance against far Infrared. We provide single silver,double silver Low-E coated glass and related Compoundglass products with optimized performance for customersaccording to the actual demands and requirements ofdifferent climate zones.

Characteristics:

1. Excellent shading coefficient, hence more effectively decrease solar radiant heat in summer.

2. Lowered U value, for further reducing heat dissipation in winter.

3. Moderate visible light transmittance to satisfy architectural design requirements.

4. Abundant color choices, so as to provide diversified aesthetic appearance options for architecture

Applied area : tropical & sub-tropical areas

Applied building : public, commercial and residential buildings

Recommended application : public and commercial buildings

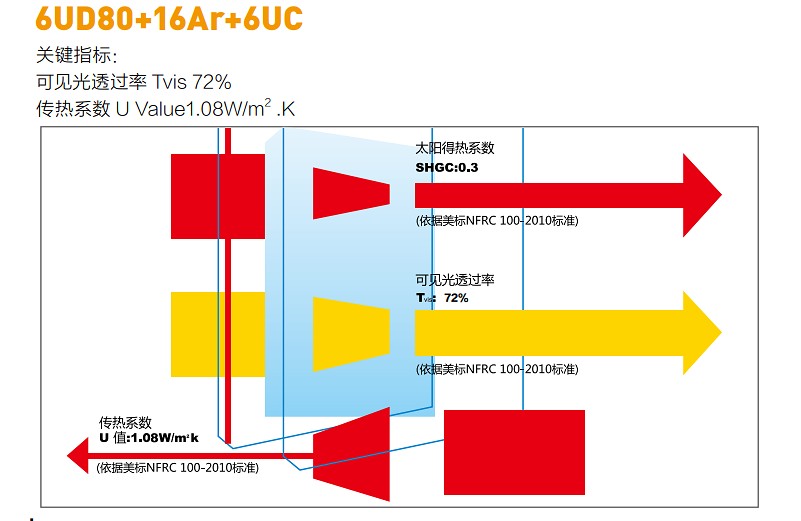

Performance parameters:

Notes:

1.This data only applies to the central area of the glass. It is calculated by the "Window 7.1" software in accordance with the American NFRC standards and the JGJ151-2008 standard.

2.The product data is for reference only. The final product parameters shall be subject to those provided by Jinjing for specific projects.

3.The formula for the light-to-heat ratio is the ratio of visible light transmittance to solar heat gain coefficient.

4.The argon gas in the structure is all composed of 10% air + 90% argon gas.
